IIt’s pretty tough to replace a world-renowned, ultra-high performance press with one that is even better, but that is just what MHM have done with the introduction of the Synchroprint  5000, following the tradition of the SP3000 and SP4000 to be the ultimate machine in sophistication, combining innovative design along with advanced technology and ease of use, this press will change the way you look at carousel screen printing presses forever.


After fine tuning the SP4000 and changing to the latest technology with ALL the latest benefits – tablet control, WIFI integration ,online support, industrial standard PCB, better performance in the AUTO SCREEN version, latest servo technology etc.

The SP5000 is now completing the new and modern MHM product family.


Standard Features

  • Independent squeegee/floodbar angle adjustment
  • Squeegee pressure regulator on every station
  • MHM 'pin-lock' screen holding system
  • Adjustable screen holders for various frame sizes*
  • Electronic centralised off-contact adjustment
  • Full micro-registration with zero starting position
  • Aluminium honeycomb pallets
  • Push button super-fast pallet changeover
  • Flash cure adjustments from main control unit
  • Foot pedal with start/stop/hold functions
  • Safety system (bars)
  • Variable speed index control - optional
  • Laser positioning guides - optional
  • Smartphone / PC-app (links to tablet control) - optional
  • U-clamp screen holders with pneumatic lock - optional
  • Multiprint function - optional
  • Vacuum pallet system - optional
  • Individual o-contact adjustment - optional
  • Automatic 'GOTO' registration system - optional
  • Precision crafted aluminium steel contruction
  • Super-rigid pallet support arms for zero deflection
  • Tablet main Control unit with WIFI conectivity
  • Self-diagnostic operating system
  • Instant technical support via internet
  • Online software updates
  • Print job memory storage via main control unit
  • High-speed AC/Servo electric index movement
  • Single/Double Index (in both directions)
  • Print start/finish and sample modes
  • Production/batch counter
  • Skip/miss-loaded shirt button
  • Pre-heat pallets function
  • Powerful AC electric drive print heads
  • Control keypad on every print station
  • Individual 'chopper' squeegee system
  • Quick release squeegees & floodbars
  • Squeegee arm lift for increased visibility
  • Independent flood/print speed controls
  • Tool-free front/rear stroke length adjustment

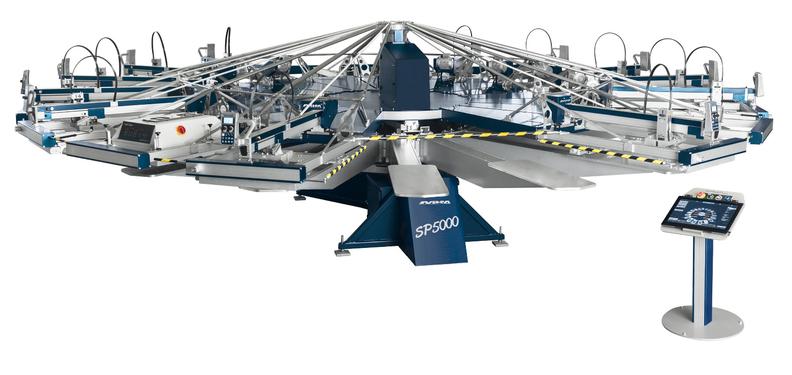

MHM Synchroprint 5000

*All MHM machines are compatible with both standard and re-tensionable roller frames.
