Combining advanced technology with ease of use, the SA-Evo comes bursting with a host of standard features taken directly from its larger brothers within the MHM product range. For added flexibility, this press only requires a single phase electricity supply and has been designed to fit through a single doorway during installation, great for small businesses where space is at a premium.


High speed, smooth and multi-directional AC-Servo indexing and a host of time saving features are incorporated to reduce set-up times and boost your productivity to new levels, whilst future-proof software updates from the built in WIFI connection will ensure that you protect your investment well into the future.

*All MHM machines are compatible with both standard and re-tensionable roller frames.

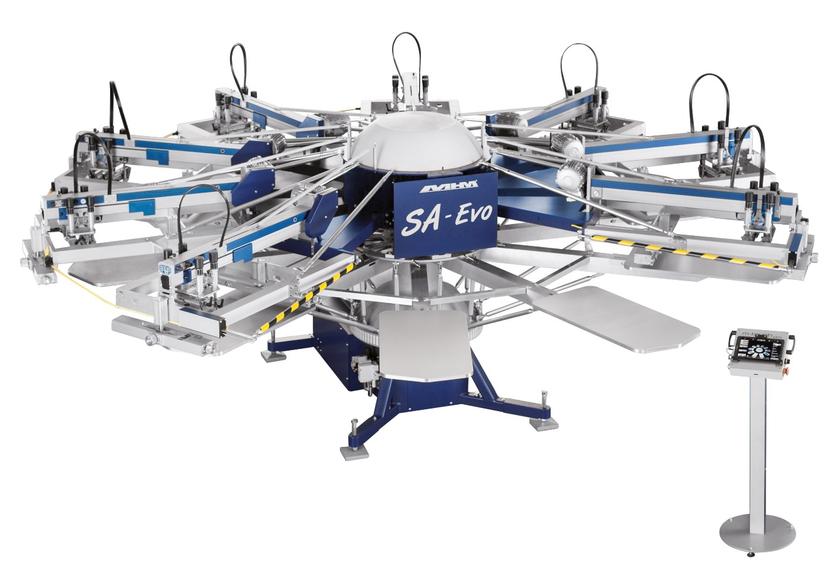

MHM SA-Evo

  • Independent squeegee/floodbar angle adjustment
  • Squeegee pressure regulator on every station
  • Adjustable screen holders for various frame sizes*
  • Centralised off-contact adjustment
  • Front/rear micro-registration
  • Aluminium honeycomb pallets
  • Push button super-fast pallet changeover
  • Flash cure adjustments from main control unit
  • Foot pedal with start/stop/hold functions
  • Safety system (cable)
  • MHM 'pin-lock' screen holding system
  • Powerful AC electric drive print heads
  • Variable speed index control - optional
  • Laser positioning guides - optional
  • Smartphone / PC-App - optional
  • Multiprint function - optional

Standard Features:

  • Tablet main control unit with WIFI connectivity
  • Self-diagnostic operating system
  • Instant technical support via internet
  • Online software updates
  • Print job memory storage via main control unit
  • High-speed AC/Servo electric index movement
  • Single/Double Index (in both directions)
  • Print start/finish and sample modes
  • Production/batch counter
  • Skip/miss-loaded shirt button
  • Pre-heat pallets function
  • Control keypad on every print station
  • Individual 'chopper' squeegee system
  • Quick release squeegees & floodbars
  • Independent flood/print speed control
  • Tool-free front/rear stroke length adjustment
