Direct to screen

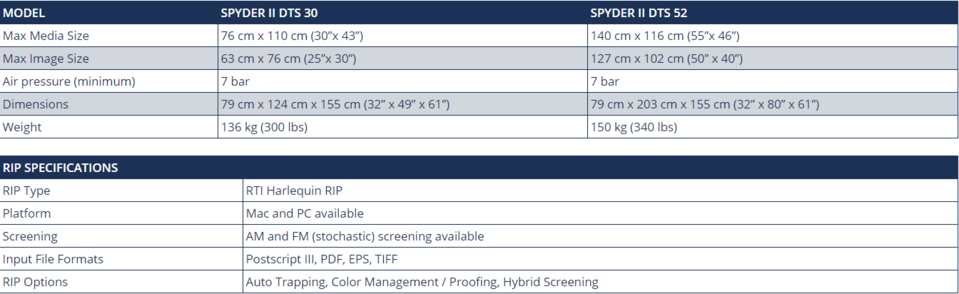

Features and benefits:

  • Phase-change inkjet / Solid ink technology
  • Resolution 600 dpi and 1200 dpi
  • Halftone Capability 75 lpi @ 600 dpi / 110 lpi @ 1200 dpi
  • Imaging Speed
  • Approximately 13 sq m/h (2.4 sq ft/min) @ 600 dpi / Approximately 8 sq m/h (1.5 sq ft/min) @ 1200 dpi
  • Accuracy from screen to screen 0,0254 mm (0,001”)
  • Power Requirements 120 V / 220 V 50-60 Hz 15 amp
  • Connectivity via ethernet
  • Operating Temperature 10ºC to 30ºC / 50ºF to 86ºF
  • Operating Humidity 35% to 75% non-condensing
  • Ink Type Solid block / Water dispersable photo resist mask

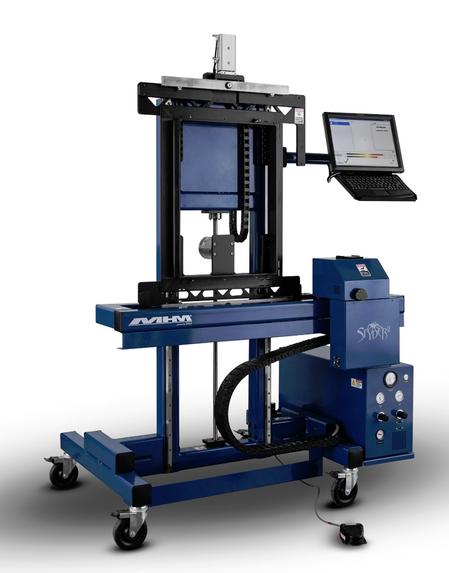

This unit is perfect for any busy screen room looking to reduce labour, improve print quality and speed up job turnaround. The DTS Imaging System simplifies the screen making process by generating high-resolution opaque images directly on to coated screens without the use of traditional film.

Supplied complete with the MHM pin registration system, set-up times are significantly reduced by virtually eliminating the need for the screens to be registered on-press, and with no further need for the vacuum hold down or the glass surface on the exposure unit, ‘pin-holes’ and ’touching-in’ will become a thing of the past.
